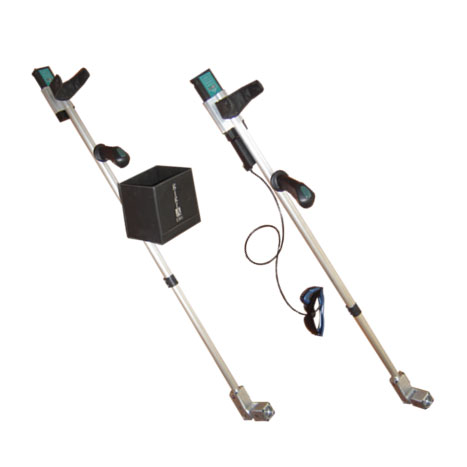

GIGRA 1308 UNDER VEHICLE INSPECTION EQUIPMENT
Main Body : Light Aluminium
Main Body Dimensions:L=152cm W=15cm H=42cm
Battery Life: 4,5 / 5 hours
Weight: 2.5 kg
Camera Moving Angle: 90C
Camera Illumination: 6 LED
WATERPROOF COLOR CAMERA
Effective Pixel: 250.000 290.000
Weight: Approx 280 gr
Operation Temperature: -10C ~ +50C
Gamma: 0.45 LED: 6 EA
S/N Ratio: 45 db or more
Video Out: RCA or BNC
5 TFT-LCD DISPLAY
ActiveArea:121(W) x 99(H)x13(DD)mm
Resolution :960(H)x234(V) dots
Brightness: 250 cd/m2
Operation Temperature: -10C ~ +50C
StorageTemperature: -20C ~ +70
CHumidity: %10 ~ 90 Rh
Operating Voltage: DC 12V ( 11-18V)
