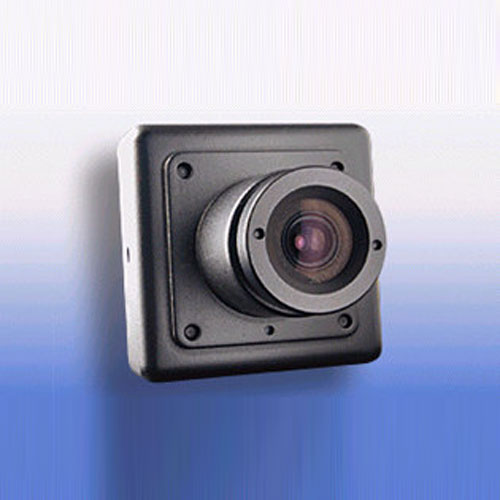

1. 500 SERIES
  • This unit is a micro compact size camera with multi-featured within a single board.
  • The camera utilizes image enhancement technology to produce superb picture quality. Low lux sensitivity is as low as 0.05lux @ F2.0 0.0003 lux @F1.2
  • The camera power requirement is DC12V using a regulated PSU
  • This model camera employs a state-of-the-art technology and fashionable design as an ideal solution to most internal CCTV and covert applications

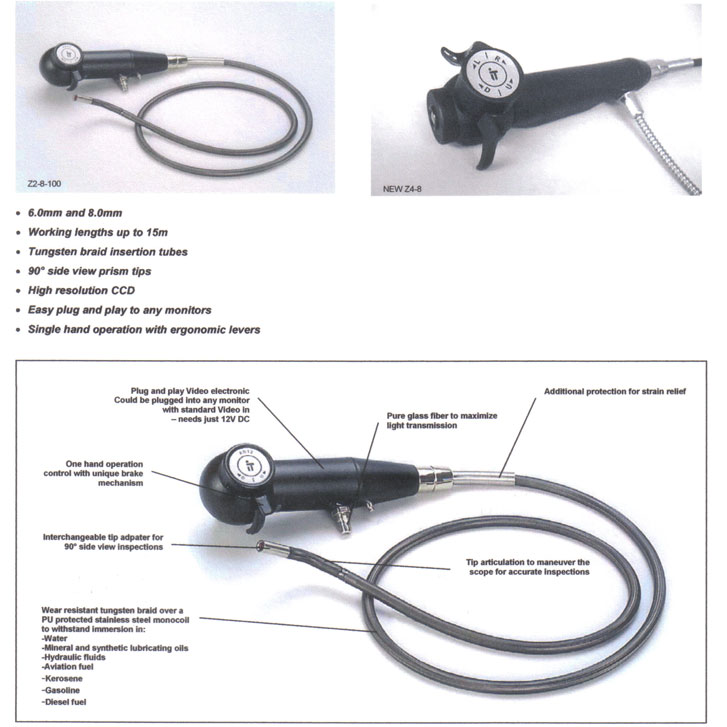

2. FLEXIBLE VIDEOSCOPE
Z-SERIES

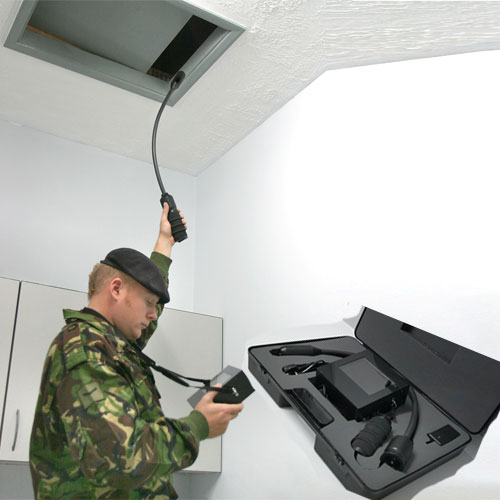

3. TYKE FULLY PORTABLE WIRELESS BULLET CAMERA SEARCH SYSTEM
Wireless TYKE

Developed to enable fast car search around wheel arches and underneath floor pans, the new WIRELESS TYKE is also suitable for small loft space viewing and other areas of building and vehicle search.

Using high power 940 near IR LED’s and a very sensitive high resolution monochrome camera, TYKE offers covert illumination with good viewing distance. Having a bullet shape camera head, formed in nylon with a long flex and stay section and handle grip incorporating a 2.2amp lithium ion battery pack TYKE is simple and easy to use. For overhead applications, the handle grip quickly attaches to a telescopic pole extension, by means of a double start thread.

The operators remote view of the camera picture, is via a neck strapped control unit, incorporating a 5.6 inch colour TFT monitor and light weight lithium ion re-chargeable battery pack. The control unit has an in built 2.2gHz receiver.

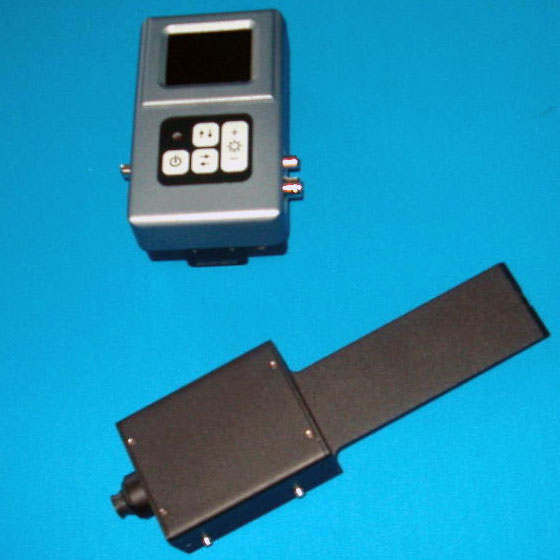

4. UNDER DOOR CAMERA
Covert Search and Surveillance
The Under Door Camera (UDC) can be used to survey rooms without the camera being visible to room
occupants. Clear covert views can be obtained in rooms with limited ambient light. The UDC can also be used with a light source that is not visible to the human eye. Quickly look into rooms with minimal physical site preparation or disturbance. The UDC is a practical and robust tool for use by professionals in a demanding environment.

Technology
The UDC utilizes advanced, high performance technology that is not found in any other under the door device. In the UDC a tiny Charge Coupled Device (CCD) camera has been built into the leading edge of the camera tongue. This image sensor provides high resolution black and white images which are transmitted to a monitor outside of the room being investigated.

Configuration
The UDC is a valuable tool for use in the field in its basic configuration. The UDC platform is expandable for organizations wishing to add capabilities such as infrared illumination, wireless image transmission or different monitor options.

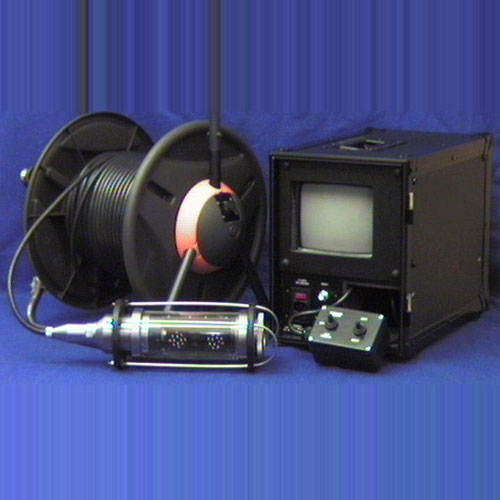

5. NEMO UNDERWATER COLOR/MONOCHROME CAMERA
A compact underwater camera system featuring two sensitive CCD colour/monochrome cameras housed in a heavy duty stainless steel and Perspex module.

The camera provide either forward or side viewing with 270º rotation. The two 5 watt krypton lamps surround each camera to enhance viewing when ambient light is poor, or non existent. When monochrome camera used high intensity IR led’s are fitted.

The system can be controlled by either a hand held 4” LCD battery powered unit or a mains/12v DC 10” monitor fitted into a ruggedised front opening case.

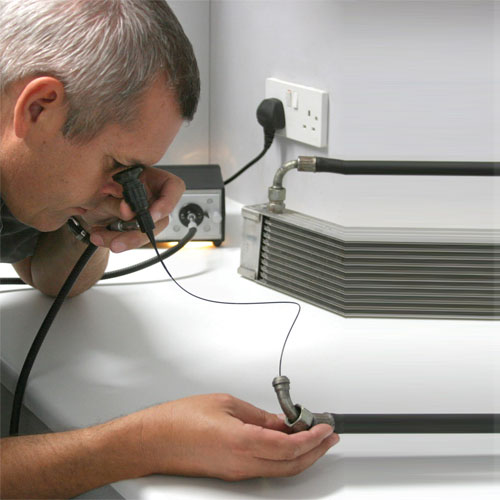

6. MICRO FLEXIBLE FUSED QUARTZ ENDOSCOPE RANGE
INSPECTION OPTICS MICRO FLEXIBLE ENDOSCOPE RANGE

0.9-2.5mm dia with varying lengths up to 3000mm long. Constructed from robust stainless steel body incorporating a focusing 31.75mm eyecup. Insertion tube of fused quartz fibre clad in polyurethane outer sheath, image resolution from 10,000-50,000 pixels. Directions of view 0º forward & 90º side. Fields of view 70º as standard others on request.
